How to import data using Proc Import?

Do you want to import data using Proc Import?

PROC IMPORT in SAS is used to read data to SAS. Reading data from an external file is the most frequent task of a SAS programmer.

In this article, we’ll show you how to use PROC import to read external files.

Before we start, do remember that the PROC IMPORT procedure can import data only if that data type is supported by SAS and SAS can import only numeric and character data types.

So, first, look at the syntax of Proc Import.

PROC IMPORT DATAFILE=filename OUT=sas-datasetDBMS= data-source-identifier REPLACE;
SHEET= sheet-name GETNAMES=Yes/No DATAROW=n;
RANGE=range-values
RUN;

Arguments:

DATAFILE=filename: It is used to specify the complete path and filename or fileref for the input file. A fileref is a SAS name that is associated with the physical location of the output file.

Note: A pathname for a file can have a maximum length of 201 characters.

OUT= SAS data-set: This tells SAS to create a SAS dataset. By default, the SAS dataset is created in your work library. You can also specify a two-level SAS dataset name.

For more information, see our guide on SAS Libraries.

DBMS=data-source-identifier: This is an optional argument and is used to specify the type of data to import. To import a DBMS table, specify DBMS = using a supported database identifier.

For example, to import a tab-delimited file you must specify TAB as the identifier. If you have a delimited file that does not end in .csv specify the DLM as the identifier and the  delimiter= option. The default delimiter is blank.

The below table shows some of the values that are frequently used for the DBMS identifier.

DBMS Identifiers Supported in Base SAS
Identifier Output Data Source Extension
CSV Delimited file (comma-separated values) .csv
DLM Delimited file (other than blank) .dat or .txt
TAB Delimited file (tab-delimited values) .txt
XLS Excel 97-2003 workbooks .xls
XLSX Microsoft Excel 2007 and later .xlsx
ACCESS Microsoft Access 2000 and later .mdb

You can find the Other DBMS here in the SAS Help Center.

REPLACE: This is also an optional argument. If you specify the REPLACE option, it overwrites an existing SAS data set.

If you do not specify REPLACE, the IMPORT procedure and the dataset already exists, the PROC IMPORT procedure does not overwrite the existing dataset and a NOTE is written in the log with the below message:

NOTE: Import canceled. Output dataset dataset-name already exists.
Specify REPLACE option to overwrite it.

SHEET: When you have to import data from a specified sheet in excel, you can use this option to specify the sheet name. By default, SAS will import sheet1 from excel.

GETNAMES: SAS imports the first row of an excel sheet as the Variable name for the SAS variable. Similarly, if you specify the No option, it will tell SAS, not to use the first row of data as variable names and instead, SAS creates variable names as VAR1, VAR2, and so on.

DATAROW= Using this option you can specify the starting row from where SAS would import the data. If you omit this option, SAS will import data starting from the 1st row of excel.

An important point to note here is:

When GETNAMES=YES, DATAROW must be greater than or equal to 2. When GETNAMES=NO, DATAROW must be greater than or equal to 1

RANGE= For specifying the range of rows and columns of an excel sheet, use the range option with the sheet range as arguments.

Importing a Delimited File

A delimited file is a plain text file that contains a separator between the data fields. Delimiters can be commas, tabs, or other characters such as a pipe character or an exclamation point. See the example below of a raw text file, in which each data field is delimited with the ‘|’ symbol.

FirstName|LastName|Gender|Country|Age
Dulce|Abril|Female|United States|32
Mara|Hashimoto|Female|Great Britain|25
Philip|Gent|Male|France|36
Kathleen|Hanner|Female|United States|25
Nereida|Magwood|Female|United States|58

Reading delimited text files into SAS is a much easier process. The below code snippets is used to import a delimited .txt file where the records are separated by ‘|’.

Note the use of DBMS=DLM and delimiter='|' option.

proc import datafile="/home/9to5sas/examples/data.txt" dbms=dlm
        out=mydata replace;
    delimiter='|';
    getnames=yes;
run;

proc import in sas

Importing a Tab-Delimited File into SAS

A tab is specified by its hexadecimal value. For ASCII systems (UNIX, Windows, and Linux), the value is ’09’x. For EBCDIC systems (z/OS and MVS), the value is ‘05’x.

As an example, the syntax to specify a tab delimiter on an ASCII system is DLM=’09’x or delimiter='09'x

Note: The positioning of the quotation marks and the x in hexadecimal values is critical. Do not give any space between the x and the quotation marks.

The below code snippet is an example of importing a Tab-delimited file in SAS.

PROC IMPORT DATAFILE= "/home/9to5sas/examples/data.txt"
OUT= mydata replace
DBMS=dlm;
delimiter='09'x;
GETNAMES=YES;
RUN;

Importing a Space-Delimited File

Similar to the tab, the hexadecimal value for a space in the ASCII system is ’20x’. Hence, to import a space-delimited file, specify delimiter = '20'x

PROC IMPORT DATAFILE= "/home/9to5sas/examples/data.txt"
OUT= mydata replace
DBMS=dlm;
delimiter='20'x;
GETNAMES=YES;
RUN;

Importing a Comma-Delimited File with TXT extension

To import a comma-separated file that has a  txt extension, specify delimiter = ‘,’

PROC IMPORT DATAFILE= "/home/9to5sas/examples/data.txt"
OUT= mydata replace
DBMS=dlm;
delimiter=',';
GETNAMES=YES;
RUN;

Importing a Specific Delimited File Using a Fileref

When you use a fileref to specify a delimited file to import, the logical record length (LRECL) defaults to 256, unless you specify the LRECL= option in the FILENAME statement. The maximum LRECL that the PROC IMPORT procedure supports is 32767.

FirstName LastName Gender Country Age
Dulce Abril Female 'United States' 32
Mara Hashimoto Female 'Great Britain' 25
Philip Gent Male France 36
Kathleen Hanner Female 'United States' 25
Nereida Magwood Female 'United States' 58
filename mydata2 '/home/9to5sas/examples/data2.txt' lrecl=100;
proc import datafile=mydata2 dbms=dlm out=mydata2 replace;
    getnames=yes;
run;

Proc Import Output

Importing a Comma-Delimited File with a CSV Extension

By default PROC IMPORT procedure recognizes .csv as an extension for a comma-separated file so if you are importing a .csv file DBMS option is not required. However, it is required if you are importing a.txt file that has comma-delimited data.

proc import datafile="/home/9to5sas/examples/mydata3.csv"
        out=mydata3;
run;

Proc Import Output

Importing a file containing multiple delimiters

It is also possible to I’m[ort a file containing multiple delimiters. If two or more delimiters are present in the input file, quote each delimiter following the delimeter= option.

As in the below example, if the input file has both comma and tab as the delimiter, you need to quote each of the delimiters – delimiter=','09'x '

PROC IMPORT DATAFILE= "/home/9to5sas/examples/mydata.txt"
OUT= outdata
DBMS=dlm
REPLACE;
delimiter=','09'x ';
GETNAMES=YES;
RUN;

Importing records from a specified row

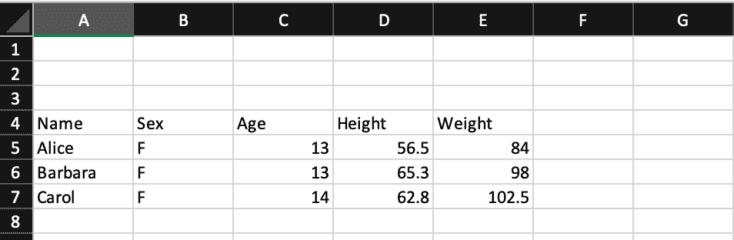

In some scenarios, you can have Variable names and data beginning at later other than row 1. For example, a delimited file has the variable names on row 4 and the data starts on row 5.

How to import data using Proc Import?

When using, PROC IMPORT, you can specify the row number at which SAS should begin reading the data using the DATAROW= option. Although you can specify which record to start within PROC IMPORT, you cannot extract the variable names from any other row except the first row of an external file that is xls or backward compatible. SAS will automatically rename variable names in the form VARx (where x is a sequential number) in the SAS Enterprise Guide and Sequential Alphabets in SAS Studio.

Here is an example.

proc import datafile="/home/9to5sas/external_files/class.xlsx"
out=class dbms=xlsx replace;
datarow=5;
run;

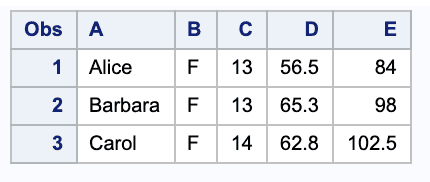

Data will be read from row 5 due to the DATAROW= option.

How to import data using Proc Import?

Importing variable names other than the first row

Suppose you have variable names starting from the 2nd row in an excel file. In this case, you can use DATAROW= and STARTROW= or NAMEROW and DATAROW=

proc import datafile="/home/9to5sas/external_files/class.xls"
out=class dbms=xls replace;
NAMEROW=4;datarow=5;
run;

NAMEROW=2 tells SAS to read variable names from the second row and STARTROW=3 is used to read values starting from the third row. You need to use both options otherwise the variable names will also be read in the 2nd observation.

Note: STARTROW and NAMEROW only work with XLS and not with XLSX format. For XLSX formats you can use the RANGE= option discussed later in this post.

Using the RANGE= option

Range option is used to subsets a specified section of an Excel file. RANGE="Sheet1$A4:E7" tells SAS to import data from range A4:E7 from sheet1.

If you omit the RANGE= statement, the entire sheet will be imported and you might get more columns or missing data than you want. The sheet selected also might not be the one that you wanted. Therefore, it is strongly recommended that you use the RANGE= statement.

If you use GETNAMES=YES then the first row of data in the range is used for the column names, and the data starts from the second row in the range. By default, the data starts from the first row and column names are generated by the IMPORT procedure.

proc import datafile="/home/subhroster20070/9to5sas/external_files/class.xls"
        out=class dbms=xls replace;
    range="Sheet1$a4:e7";
run;

Using Name Range

The range- name is the name that is assigned to a range address within the sheet. Range names are not case-sensitive. The range address is identified by the top-left cell that begins the range and the bottom-right cell that ends the range within the Excel worksheet file. You can create your own defined name.

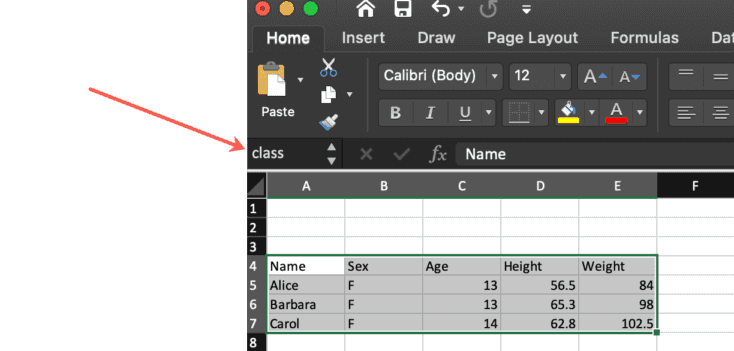

To create a name, select a cell or range of cells, click on the box above Column A, Type any name you want, and press Enter. In the example below, Range A4:E7 is selected and then a name of “class” is given.

How to import data using Proc Import?

The beginning and ending cells are separated by two periods. The range address A15:E28 indicates a cell range that begins at Cell a15, ends at Cell E28, and includes all cells in between.

proc import datafile="/home/9to5sas/external_files/class.xls"
out=class dbms=xls replace;
range="class";
run;

A worksheet in a .xls file can save up to 256 columns and 65,536 rows. Excel 2007 and later files (.xlsx files) have been enhanced to support 16,384 columns and 1,048,576 rows in a worksheet.

Using the GUESSINGROWS= option

For delimited files, SAAS scans the first 20 rows are scanned to determine the variable type and length attributes. You can increase the number of rows that are scanned by using the GUESSINGROWS= statement.

Here is a scenario.

Suppose you have the first 30 rows as numeric then the remaining are character values. SAS would make all the character values blank. To avoid this you can use specify the GUESSINGROWS=100 option.

See the column last name and Age in the below input file.

input file

Row Number 29 has a character value in the Age field and Row Number 35 has a length more than the first 20 rows.

Proc Import guessing rows

While importing this file, SAS writes an error message in the log. This is because SAS has determined the datatype of Age as Numeric by scanning the first 20 rows. And there is a character variable in the Numeric field. Hence the error.

Also, see the output below where there is a missing value at observation 28, and at observation 34, the value of the last name variable has been truncated.

guessingrows

To avoid these errors and truncation of values, use the guessing rows option with a value of more than the rows in your data or use guessingrows=Max.

Note that if your input data contains thousands of records it would make the import process slow. Here, I have used GUESSINGROWS=100.

proc import datafile="/home/9to5sas/examples/data8.csv"
        out=mydata5 replace;
        guessingrows=100;
run;

So, this is our importing data using the Proc Import Procedure. We really hope that you must have found it useful.

Moreover, if you have any other suggestions regarding other tips or tricks, suggest us below the comment section. We would really take those lists in our further blog post.

Thanks for reading!
